Before installing Progress MOVEit Analytics, evaluate your current MOVEit system to determine the best installation configuration for your organization. Your organization's MOVEit servers may be located on stand-alone machines, separate from their MOVEit databases, or both MOVEit Server and MOVEit database may be installed on the same machine. Your organization may have numerous MOVEit servers, or perhaps only one or two MOVEit servers.
Consider the following components when deciding how to install Progress MOVEit Analytics within your existing MOVEit system:
The Progress MOVEit Analytics Server: You must install the Server on a standalone machine. The Server installation includes the installation of a dedicated PostgreSQL database.
Progress MOVEit Analytics Agents: You must install one Agent for each MOVEit database that you want to include in the Progress MOVEit Analytics environment for analysis. You can install an Agent on any machine that has network access to the MOVEit database; the Agent machine does not need network access to the MOVEit server. The Agent must also have network access to the Progress MOVEit Analytics Server, but cannot be installed on the Progress MOVEit Analytics Server. You can install only one Agent per machine (bare metal or virtual machine), and one Agent per SQL instance.
MOVEit Automation Servers and Databases
MOVEit Transfer Servers and Databases
Below are some sample Progress MOVEit Analytics installation configurations. Each sample configuration includes only one MOVEit Automation server and only one MOVEit Transfer server for demonstration purposes. Your system could have a different number of MOVEit servers. You can choose a different configuration for each MOVEit server if desired.
Note: The sample configurations show only three web browsers connecting to the Progress MOVEit Analytics Server; however, the Progress MOVEit Analytics Server can support up to 100 concurrent web client users.

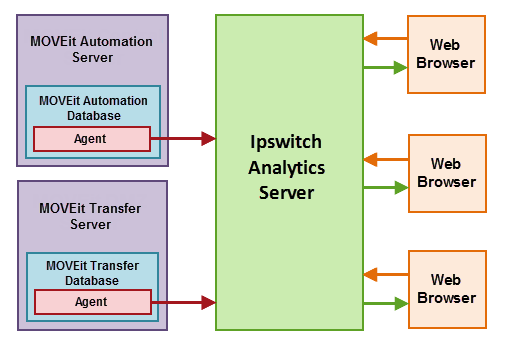

MOVEit server, MOVEit database and Progress MOVEit Analytics Agent installed on same machine:

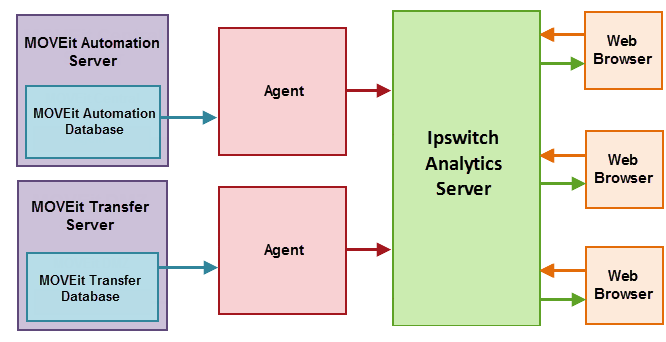

MOVEit server and MOVEit database installed on the same machine, and Progress MOVEit Analytics Agent installed on a separate machine:

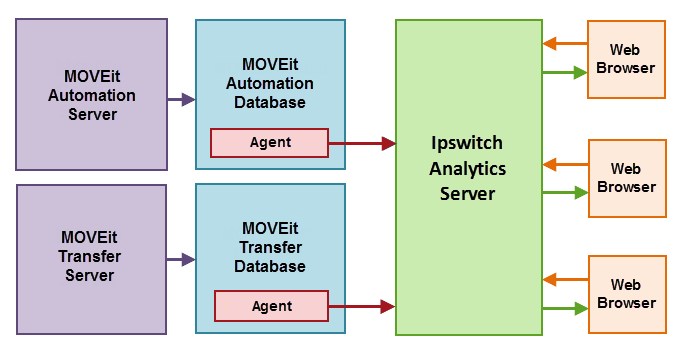

MOVEit server installed on a separate machine, with MOVEit database and Progress MOVEit Analytics Agent installed on the same machine:

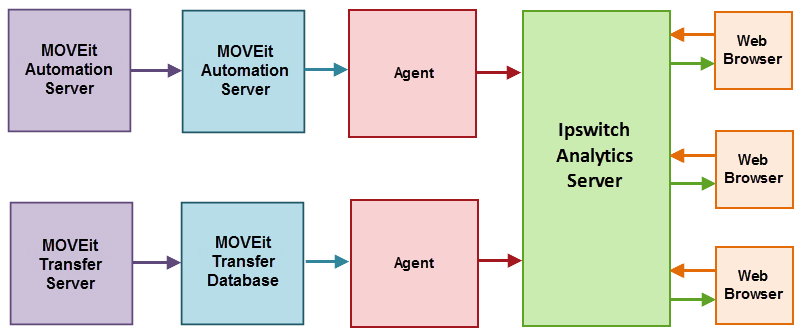

MOVEit server, MOVEit database and Progress MOVEit Analytics Agent installed on separate standalone machines:
The following configurations show MOVEit Transfer and MOVEit Automation installed on standalone machines with both MOVEit SQL Server databases sharing a third standalone machine.
One Agent installed on the SQL Server database machine and one Agent installed on a standalone machine (physical or virtual):

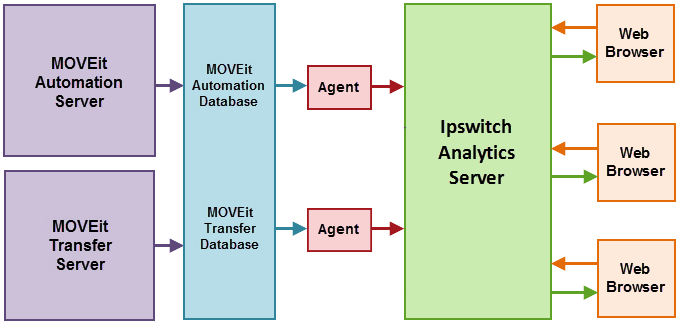

Both Agents installed on standalone machines (physical or virtual):

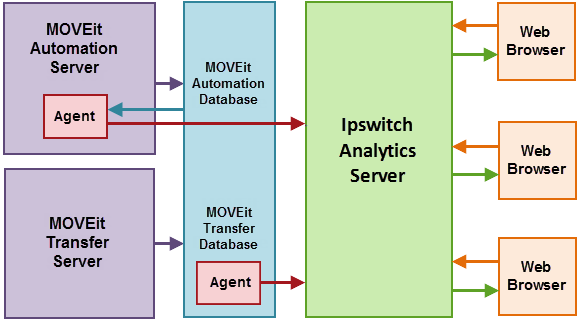

One Agent installed on the SQL Server database machine, the other Agent installed on a MOVEit server:

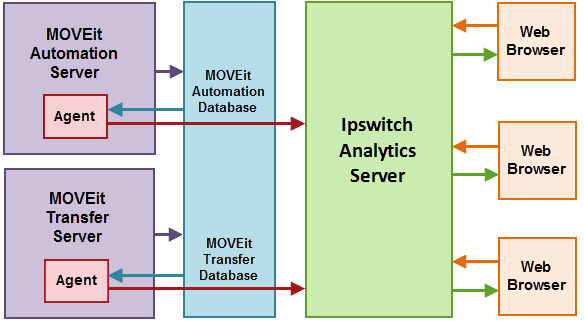

An Agent installed on each MOVEit server:
MOVEit Transfer Web Farms
If your MOVEit Transfer system is set up as a Web Farm, it contains only one MOVEit database. Install only one Agent, either on the Web Farm database machine, or on a separate machine that has a network connection connects to the Web Farm database machine.

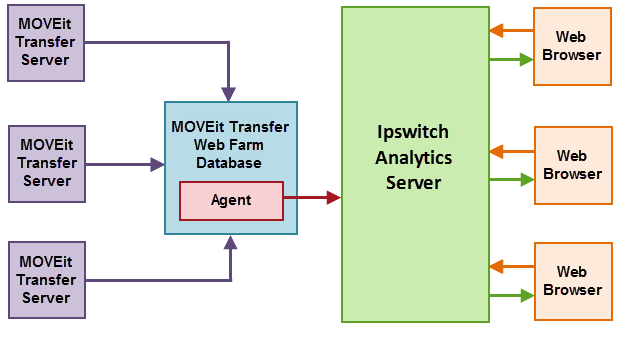

MOVEit Transfer Web Farm database connected to multiple MOVEit Transfer servers. Progress MOVEit Analytics Agent installed on same machine as Web Farm database:

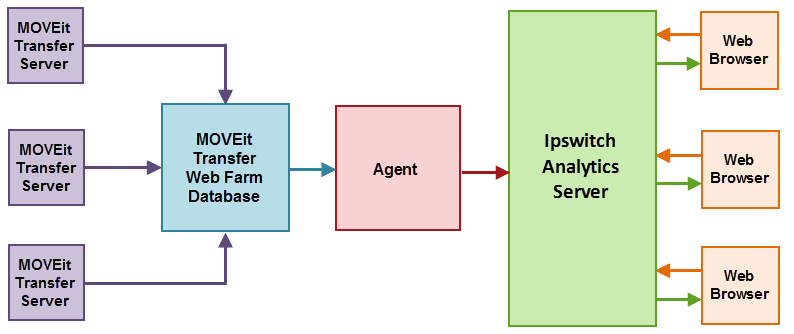

MOVEit Transfer Web Farm database connected to multiple MOVEit Transfer servers. Progress MOVEit Analytics Agent installed on a separate standalone machine that connects to the Web Farm database:
MOVEit Automation Legacy Failover
If your MOVEit Automation system is set up for Failover, you will have a primary server and a secondary (failover) server that activates only if the primary server fails. Below are the two possible configuration options for installing Progress MOVEit Analytics into a MOVEit Automation Legacy Failover environment. Dotted lines indicate dormant connections.
Single Microsoft SQL Server Database
MOVEit Automation primary and secondary servers point to the same Microsoft SQL Server database on a standalone machine. Install one Agent on the MOVEit Automation Microsoft SQL Server database machine.

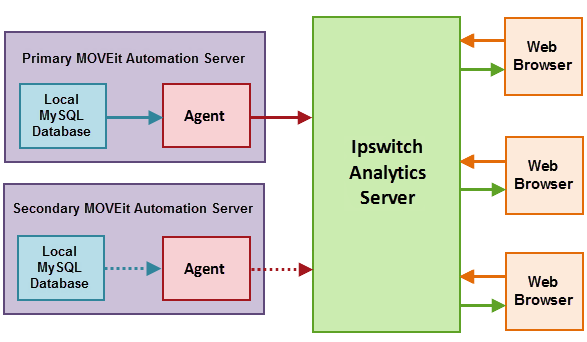

Two Local MySQL Databases
In this scenario, the primary and secondary servers point to their own local MySQL databases. Install Agents on each MOVEit Automation server. You can use a single Agent license for both the primary and secondary Agents since only one database will send data to the Agent at a time.
