About VLANs View

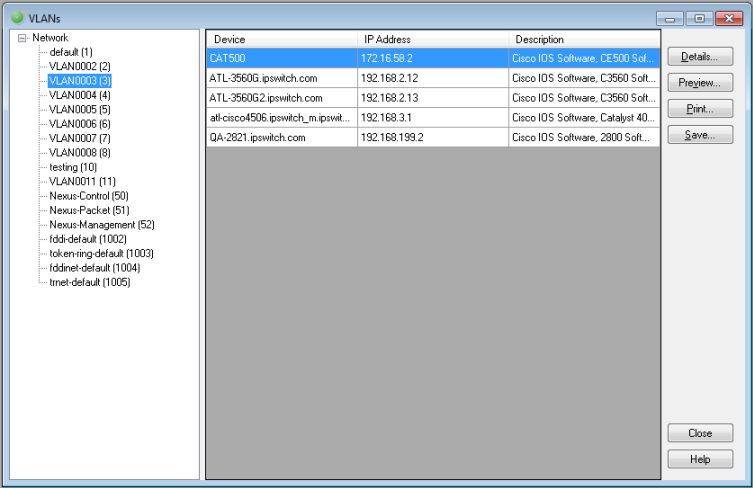

VLANs View is an explorer-type view that shows the grouping of network devices, based on their respective VLANs (Virtual Local Area Network), on the left side of the pane

On the right side of the pane, devices associated with their respective VLANs are are displayed. The data grid view can be column sorted, print previewed, printed, or saved to a comma-separated-value (CSV) file for use in Microsoft Excel or other reporting applications. For more information about data grid views, see About data grid views.

To view VLANs:

• From the main menu of the WhatsConnected console, select View > VLANs. The VLANs view appears.
